SPECIFICATIONS

Adapter Thread: M42x0.75 For T-Ring



Brand Name: svbony

Eyepiece diameter: 1.25 inch

Field of View: -

Focal Ratio: f/13

Focal length: 1365mm / 53.74 inch

Focus Type: DETACHED

Focuser: Internal

High-concerned chemical: None

Lens Coating Description: Other

Light gathering power: 210x

Limiting magnitude: 12.1

Magnification: -

Material: Metal

Model Number: MK105

Mounting: Vixen Style

Mounting Base Number: 2PCS

Objective Lens Diameter: 105mm / 4.13 inch

Optical Tube Diameter: 119mm / 4.68 inch

Optical Tube Length: 377mm / 14.84inch

Optical Tube Net Weight: 2193g / 4.83lb

Resolving power: 1.1arc seconds

Svbony Model: mk105

Type: Monocular,Maksutov-Cassegrain

Water Resistance Level: IPX4















Svbony MK105 Astronomy Telescope Review

1.https://www.youtube.com/watch?v=eUZhFq621wA&t=149s

Author:AstroOnBudget

2.https://youtu.be/JM8g9LiLlOY

Author:JPAstroGuy

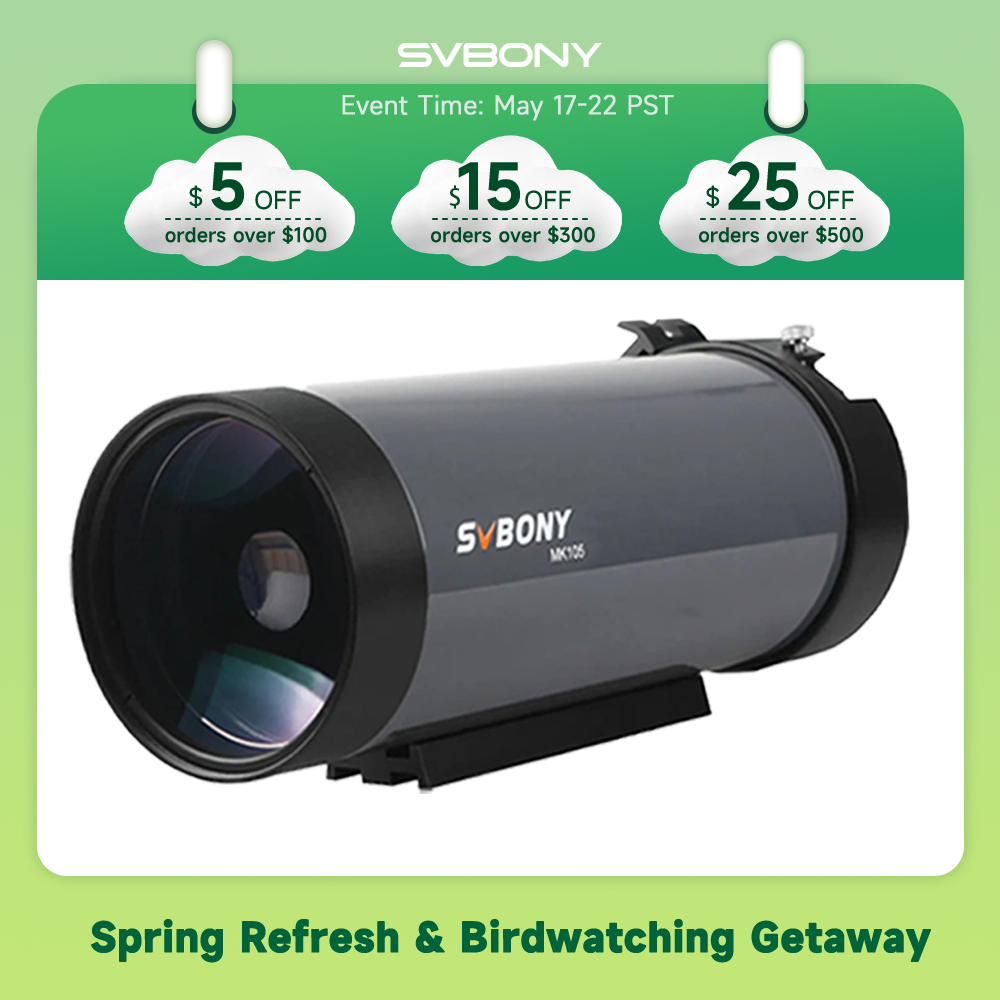

SVBONY MK105 Maksutov-Cassegrain Telescope OTA

105mm aperture &1365mm focal length

99% reflectivity dielectric coatings

Conical extinction tube for high contrast

No need for periodic collimation

160mm Vixen-style dovetail plate

Dual dovetail mounting base

Compact and portable





105mm Aperture &1365mm Focal Length

The compact telescope features 105mm large aperture and 1365mm long focal length. And that ensures great amount of light entering the telescope and high resolution, an ideal scope for making detailed lunar, and planetary observations.





99% Reflectivity Dielectric Coatings

Maksutove telescope largely reduces aberrations and renders crisp and clear views. Meanwhile the MK105’s high quality meniscus lens (fully multi-coated), primary mirror (multi-coated of precision aluminum coating) and the secondary mirror (99% reflectivity dielectric coatings and multi coating) ensure high transmittance, high reflectivity and high contrast.





Conical Extinction Tube for Stray Light Elimination

Utilizing Conical extinction tube prevent stray light from interfering with your viewing experience.





No Need for Periodic Collimation

MK105 Maksutov-Cassegrain telescope exchanges the conventional front corrector plate of a Schmidt with a convex meniscus lens, resulting in a smaller secondary mirror that limits obstruction and increases contrast, while eliminating the need for periodic collimation.





160mm Vixen-style Dovetail Plate

The mount rail is of a Vixen style dovetail design to easy attach, and the screw holes size are 1/4” and 3/8”, compatible with plenty of mounts and tripods.





Dual Dovetail Mounting Base
